37M concrete boom pump
All kinds of chassis compatible

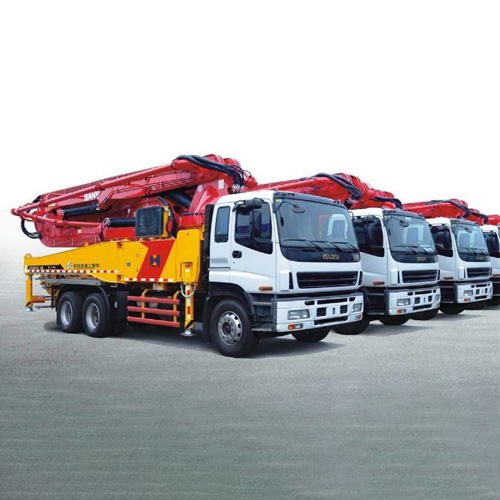

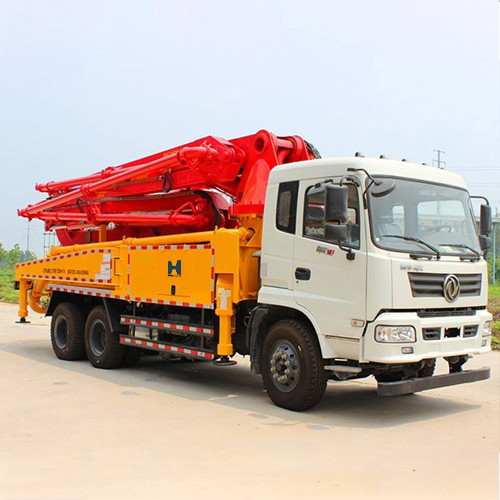

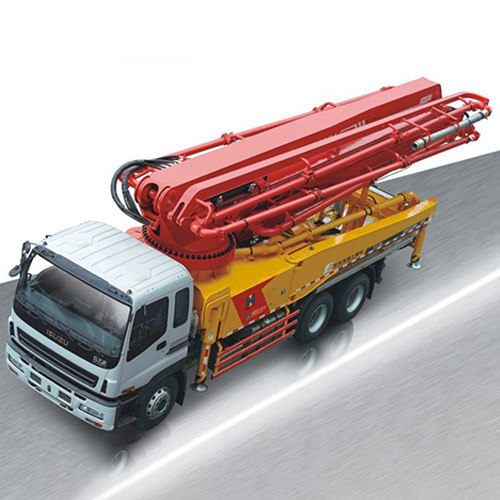

37M truck-mounted concrete pump has 37m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 37m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.
|37m Mobile Pump Truck Technical Specification|
|Items||Unit||Model of Whole Truck|
|Main Technical Parameters in Service||Theoretical Pumping Capacity||m3/h||150|
|Pumping Capacity Index||Mpa.m3/h||586|
|Theoretical Pumping Pressure||Mpa||8.5|
|Distributing Valve||S valve|
|Max. Distributing Radius||m||33.2|
|Max. Distributing Height||m||37.2|
|Max. Distributing Depth||m||24.3|
|Height of Distributing Boom When Stretched||mm||8450|
|Distance between Front Landing Legs||mm||6507|
|Distance between Rear Landing Legs||mm||6600|
|Distance between Front and Rear Landing Legs||mm||7179|
|Diameter of Conveying Pipe||mm||125|
|Length of End Hose||m||4|
|Rotary Range of Distributing Boom||365°|
|Number of Boom Sections||4|
|Rotary Angle of Each Boom Section||°||92/180/180/270|
|Main Technical Parameters in Traveling Condition||Max. Traveling Speed||km/h||90|
|Min. Turning Radius||mm||8800|
|Wheel Base between the First and the Second Axle||mm||4600|
|Wheel Base between the Second and the Third Axle||mm||1350|
|Max. Engine Power||kw||380HP (EURO IV)|
|Max Engine Torque||n.m||1350 (1100-1600r/min)|
|Max. Grade Ability||%||35|
|Fuel Consumption Limit||L/100km||34|
|Overall Dimension (L ×W× H)||mm||12000×2490×3850|
|Full-load Total Weight||kg||29000|
