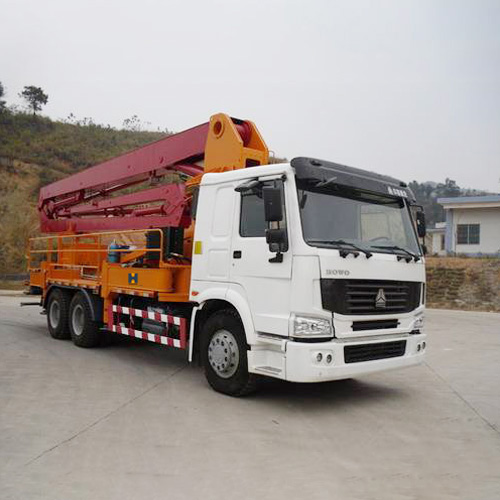

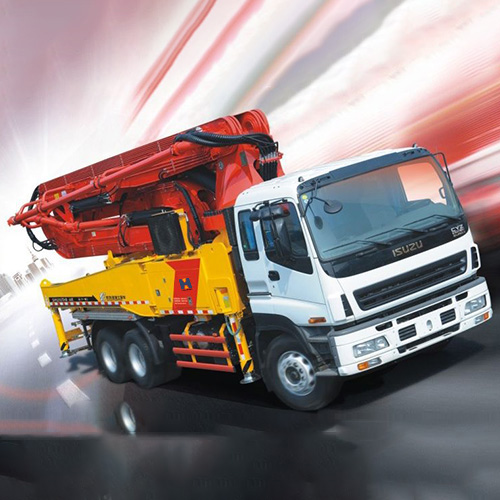

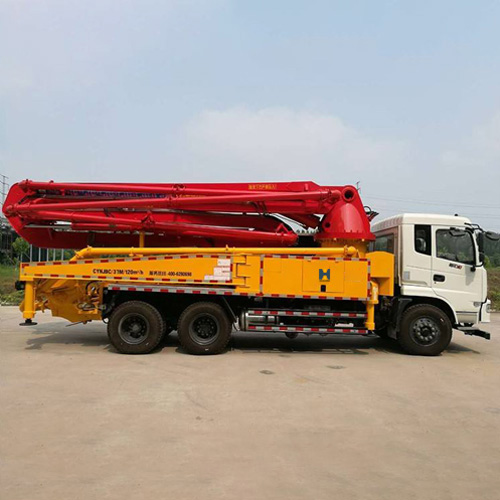

48M boom pump
All kinds of chassis compatible
Mobile:+86 15292299506
Email:sales@huaxingm.com
48 truck-mounted concrete pump has 48m vertical reach with the height limit programmed to prevent boom contact with an obstruction or overhead hazard. The 48m concrete pump provides the users reliable pumping performance along with the highly wear resistant parts including delivery pipe, discharge port, transition bushing, concrete piston, wear plate, cutting ring and delivery cylinder that improve the pumping efficiency and reduce down time.
One Button Stabilization Technology
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
Boom Anti Vibration Technology
The boom anti vibration technology reduces vibration during pumping by 50% allowing less movement and greater control of the end hose.
Energy Saving Technology
With cycle times of up to 29 per minute (at 12MPa), pump efficiency is increased up to 25% while fuel consumption is decreased by up to 10%.
Anti Overswing Technology
By adopting our new swing brake technology, the boom's overswing amplitude is reduced by 60%
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Safety Technology
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.
48m Mobile Pump Truck Technical Specification | |||
Items | Unit | Parameters | |
HX5381THB-48 | |||
Main Technical Parameters in Working Condition | Theoretical Pumping Capacity | m3/h | 150 |
Pumping Capacity Index | Mpa.m3/h | 586 | |
Theoretical Pumping Pressure | Mpa | 8.5 | |
Hopper Capacity | L | 700 | |
Feeding Height | mm | 1400 | |
Distributing Valve | S valve | ||
Max. Distributing Radius | m | 43.7 | |
Max. Distributing Height | m | 47.7 | |
Max. Distributing Depth | m | 34.3 | |
Height of Distributing Boom When Stretched | mm | 9065 | |
Distance between Front Landing Legs | mm | 9780 | |
Distance between Rear Landing Legs | mm | 9860 | |
Distance between Front and Rear Landing Legs | mm | 9470 | |
Diameter of Conveying Pipe | mm | 125 | |
Length of End Hose | m | 3 | |
Rotary Range of Distributing Boom | 365° | ||
Number of Boom Sections | 5 | ||
Rotary Angle of Each Boom Section | ° | 91/180/180/180/270 | |
Close-control Distance | m | 33 | |
Remote-control Distance | m | 200 | |
Main Technical Parameters in Traveling Condition | Max. Traveling Speed | km/h | 89 |
Min. Turning Radius | mm | 11900 | |
Brake Distance | m | 10 | |
Approach Angle | ° | 16 | |
Departure Angle | ° | 11 | |
Chassis Model | DONGFENG (EURO V) | ||
Wheel Base between the First and the Second Axle | mm | 1850 | |
Wheel Base between the Second and the Third Axle | mm | 4605 | |
Wheel Base between the Third and the Fourth Axle | mm | 1310 | |
Front Tread | mm | 2065 | |
Rear Tread | mm | 1850 | |
Max. Engine Power | kw | 287(2200r/min) | |
Max Engine Torque | n.m | 1863(1100r/min) | |
Max. Grade Ability | % | 37 | |
Fuel Consumption Limit | L/100km | 38 | |
Overall Dimension (L ×W× H) | mm | 13300×2500×4000 | |
Full-load Total Weight | kg | 38000 |
