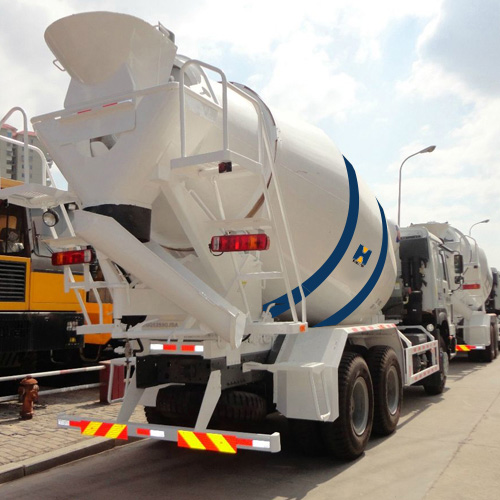

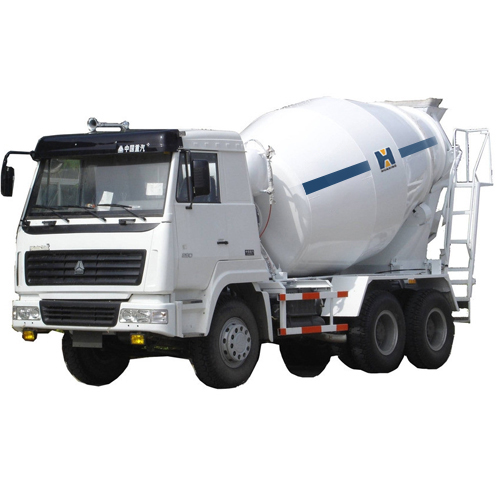

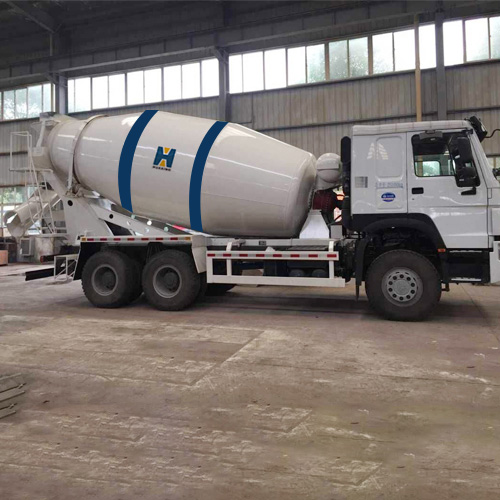

10 CBM Concrete Mixer Truck-Concrete transit mixer-Xiangtan Huaxing Material Co., Ltd

1)The leading product technology, complete function, excellent performance, reliable quality, easy to operate.

2)Optimization of body structure, special mold production, beautiful appearance, concrete mixing,discharge uniformity, low rate of residual.

3) Imported hydraulic pump, hydraulic motor and speed reducer.

4) Uses the high strength steel plate, long service life.

5) Optimization of the whole structure, low center of gravity, high running efficiency.

6) Product range is wide, the tank capacity of 6 to 18 cubic meters.

7) Choose a variety of auxiliary device.

8) Match all concrete mixer truck chassis.

9) based on strong technical support and top level technology make the trucks with high quality and more reliable
10) competitive price, cost-effective
11) quick and efficient spare parts supply bring you more convenient
12) fast delivery time, we can arrange production according to your needs exactly and quickly

13) professional import and export dealing procedure, make customs clearance more high efficiency

Specification

Model		ZZ1317N3261W
Cab		Lengthen cab
Engine（Hp）		371
Power(Kw)		273
Engine	Model	WD615.47(Euro II)
	Horsepower	371
	Max. output	273/2200
	Max.torque	1460/1300-1600
	Type	6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
	Bore x Stroke	126×130mm
	Valve	2
	Displacement	9.726L
	SINOTRUCK (CNHTC), Thermostat with 80℃ opening begin, Rigid fan
Cab	SINOTRUK HW76 Lengthen cab,single bunk,adjustable steering wheel, EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner.
Clutch	SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance
Transmission	SINOTRUK HW19710 transmission ,10 forward and 2 reverse
Front Axle	SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes
Steering	German ZF8118 Steering Gear Box ,hydraulic steering with power assistance,
Rear Axles	HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles,enforced STR axle,ratio:4.8 ;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition,heavy impact and overloading,which is the best choice for heavy construction vehicle customers.
Brake System	Service brake:dual circuit compressed air brake. Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Tyres	Rims:8.5-20,10 hole-steel ;Tyres:12.00R20 radial tyre with 1 Spare tire.
Electrics	Operating voltage:24V,negative grounded 24V，7.5KW。Starter:24V,7.5 Kw 28V，1500W。Alternator:3-phase,28V,1500 W 2x12V，165Ah。Batteries:2x12 V,165 Ah Horn,headlamps,fog lights,brake lights,indicators and reverse light.
Oil Tank	Square type-300L Aluminum alloy fuel tank
Volume (m3)	10m³
Stuffing Volume (%)	59.63
Feeding Speed (m3/min)	≥3
Discharging Speed (m3/min)	≤3
Discharge Residue(%)	≤0.2
Slump Scope(mm)	50～220
Drum Speed (min)	0～16
Obliquity（°）	10
Water supply System	1000L/Pneumatic
Drum Material	Steel plate, thickness: 3mm, 4mm, 5mm
Dimensions	Overall length x Overall width x Overall height 11060x2550x4080 Wheel base 1800+3200+1350
Weight	Kerb weight 14600 Gross vehicle weight 35000 Front axle loading capacity 2x9000 Rear axles loading capacity 2x16000
Performance	Max.driving speed (km/h) 90 Fuel consumption (1/100 km) 38
Packing	Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer,be suitable for long distance transportation of ocean and inland. The Seller shall be take measures against moisture,shocks and rust according to the special needs of the commodity.
Pump(SAUER T90P75) + Motor (SAUER M75) + Reducer (BONFIJLIOLI 577)
