Hunan Huaxing Material Group Co., Ltd.

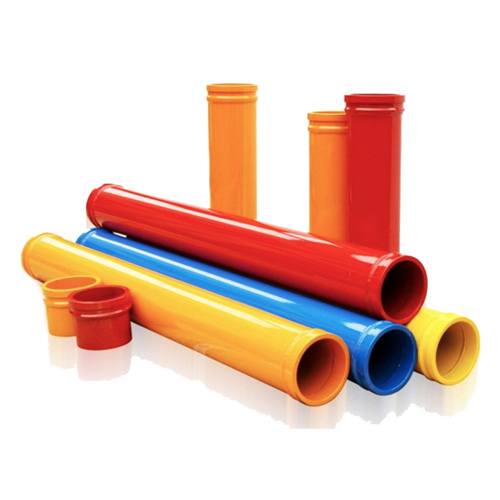

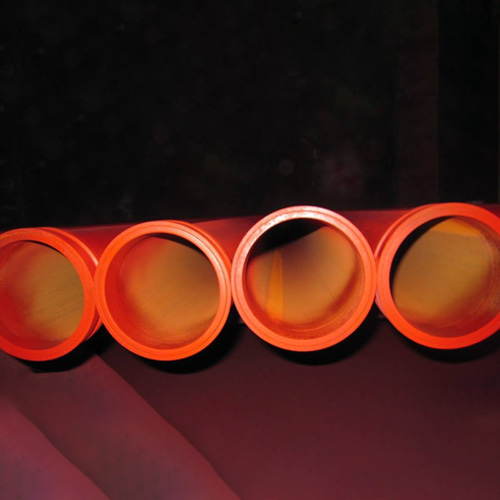

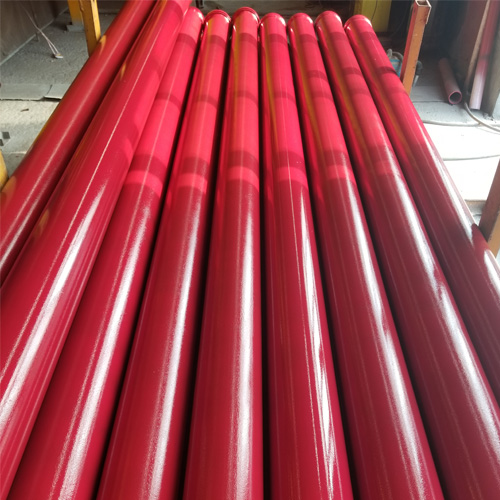

Concrete pump boom pipes are used for concrete boom pumps.

Inner wall quenched and carburized to improve pipe hardness.

Twin wall flanges making the boom pipe show more qualities when delivery concrete and cement.

Item:concrete pumping pipes DN125mm 5 inch concrete pump boom pipe

Material: 45Mn2

Thickness: 4.5mm

Length: 3m( 1- 6m can produce)

Flange type: twin wall flange

Flange size: SK148mm

Reference lifetime: 35,000- 40,000CBM

Weight: 14.26kg/m

Connection type: clamp coupling

Cleaning way: use cleaning ball

Application: concrete pump boom pipe can be used for concrete boom pumps as well as stationary pumps.

OR

Advantages:

1. Stable and superior quality of raw material.

2. Induction hardening process, hard internal and touch external.

Name	Specifcation	W.P
ST52	DN100×4.5mm×3m×SK 100 4-1/2"	85bar
	DN125×4.5mm×3m×SK 125 5-1/2"	85bar
	DN125×5mm×3m×SK 125 5-1/2"	85bar
	DN125×6mm×3m×SK 125 5-1/2" Insert Hardened Liner	85bar
	DN125×7mm×3m×SK 125 5-1/2" Insert Hardened Liner	85bar
	DN125×8mm×3m×SK 125 5-1/2" Insert Hardened Liner	85bar
Name	Specifcation	W.P
MF	DN125×4.5mm×3m×MF 125 5"	130bar
	DN125×5mm×3m×MF 125 5"	130bar
	DN125×6mm×3m×MF 125 5"	130bar
	DN125×7mm×3m×MF 125 5"	130bar
	DN125×8mm×3m×MF 125 5"	130bar
Name	Specifcation	W.P
ZX	DN125×4.5mm×3m×ZX 125 5"	130bar
	DN125×5mm×3m×ZX 125 5"	130bar
	DN125×6mm×3m×ZX 125 5"	130bar
	DN125×7mm×3m×ZX 125 5"	130bar
	DN125×8mm×3m×ZX 125 5"	130bar
Name	Specifcation	W.P
Hardened	DN125×4.5mm×3m×SK 125 5"	Twin 130bar
	DN125×4.8mm×3m×SK 125 5"	Twin 130bar
	DN125×5mm×3m×SK 125 5"	Twin 130bar
	DN125×7mm×3m×SK 125 5"	Twin 130bar
Name	Specifcation	W.P
Twin Wall	DN125×(2.5＋2)mm×3m×SK 125 5-1/2"	Twin 85bar
	DN125×(3＋2)mm×3m×SK 125 5-1/2"	Twin 85bar
	DN125×(5＋2)mm×3m×SK 125 5-1/2"	Twin 85bar

If you are interested in this product, pls submit for quotation. We will reply you within 12 hours.
