l Multi Types of Chassis Match

1. The upper can match with different Chassis of 2,3 or 4 axles

2. The upper can be designed to match with different Chassis as requirement.

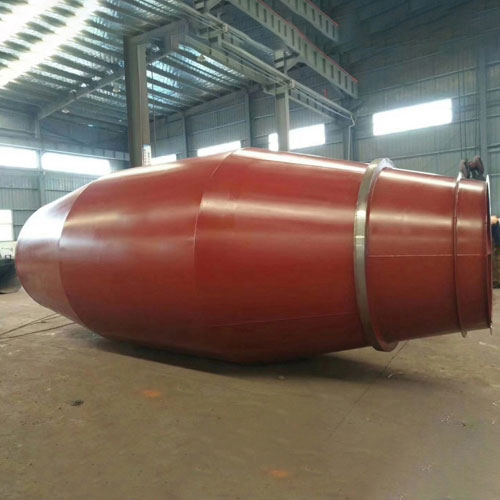

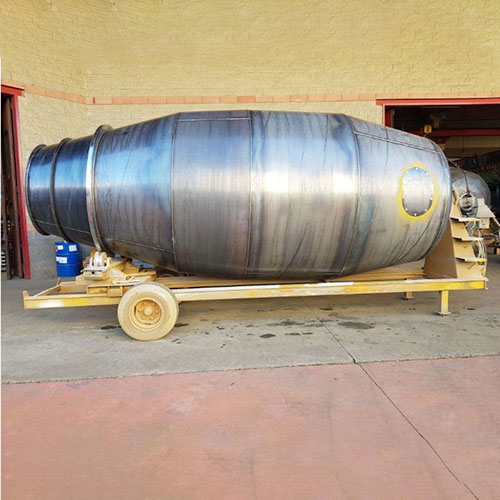

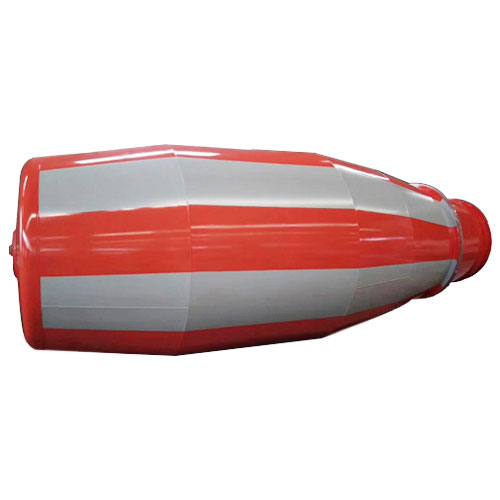

l Mixing Drum Structure

1. The drum body and blades are made by quality wearable exclusive steel plate with light weight of Baosteel Q345B. And the drum is suit for transport both dry and wet materials.

2. The surface welding adopt manipulator double welding enables the strength structure and long service life.

3. Double pitch special designed blades ensure the fully mixing inside and low discharge surplus rate.

4. Unique design of agitator inclined angle with the whole drum make the lower and stable center of gravity, this makes the driving more steady and discharging more smooth, and gains better traffic ability.

l Hydraulic System

1. Closed circuit hydraulic system and constant hydraulic oil temperature controller

2. Adopt world famous brand hydraulic pump, hydraulic motor, reducer and radiator. Also provide muti options for different requirement.

l Water Supply

1. Pneumatic water supply system with large water tank which can wash different points including agitator drum, charging hopper and discharging hopper respectively.

2. Rational layout and elegant appearance of washing pipes make the washing more convenient and rapid.
