Description

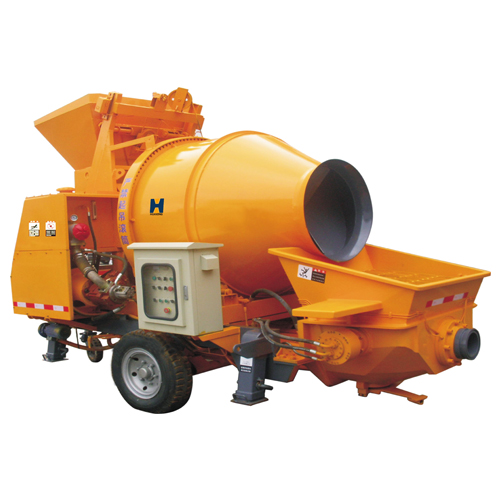

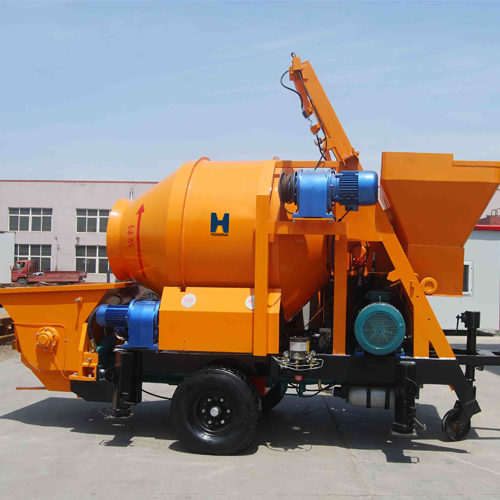

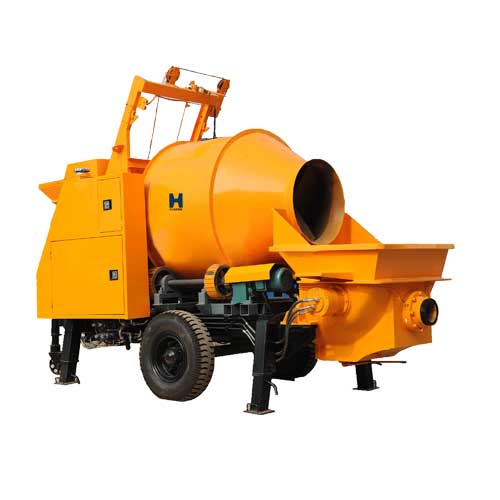

Diesel Concrete mixer pump

High-efficiency

Upgrade hydraulic concrete mixer and pump with diesel engine

Powered by diesel engine directly

Pump continuously and stabley, reduce engergy consumption.

Avoid stell rope fracture, hopper and hoister motor failure.ets.

Reliable

The whole machine only needs one diesel engine to provide the power,0 failure rate are greatly reduced as well.

Powerful

Precisely and steady

Easily transported for 3-5cm stone

Specification

Automatically system which gather aggregate, mixing and high-pressure delivery into one, easy-operating with stable performance, widely used in all kinds of fine stone pumps and large aggregate concrete, such as: new rural construction, farmland water conservancy infrastructure construction, small buildings and road construction.

Item	Unit	JBT30C-8-37	JBT40C-8-45
Theoretical concrete delivery capacity	m3/h	30	40
Theoretical max. delivery pressure	MPa	8	8
Distribution valve type		S Valve
Inner dia. of delivery pipe	mm	Φ125
Theoretical max. delivery distance horizizontal/vertical	m	200/80
Cylinder diameter/stroke	mm	Φ200*800	Φ200*800
Hopper capacity/ filling height	m3/h	0.6/1000	0.6/1000
Max. diameter of aggregates	mm	30	30
Concrete slump range	mm	120-230	120-230
Power of pumping motor	kw	37	45
Power of mixing Motor	kw	5.5*2	5.5*2
Power of winch Motor	kw	4.5	4.5
Power of waterpump motor	kw	1.1	1.1
Rated speed	Rpm	1480	1480
Voltage/Frequency	V	380	380
Oil tank capacity	L	130	130
Cleaning method		High pressure washing
Dimension (L×W×H)	mm	450022003200	450022003200
Overall weight	kg	3600	3700
