Items

Parameter

Overall weight

40t

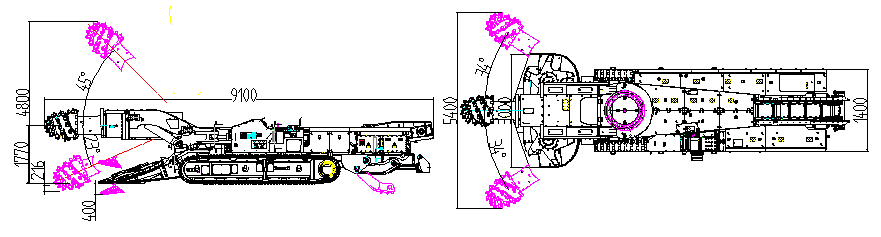

Overall

dimension

Length

9100mm

Width

Shovel plate

3000mm/2200mm

Main body

1400mm

Height

Cutting head is laid horizontally on the highest point

1770mm

Main body

1480mm

Undercut depth (telescopic/contracted)

216/180mm

Ground clearance of machine

200mm

Range of

positoningcutting

Height (telescopic/contracted)

4800/4500mm

Width (telescopic/contracted)

5400/5000mm

Area (telescopic/contracted)

26/25m2

Gantry height (mm)

400mm

Grade ability

±  18°

Travelling speed

0～7m/min

Grounding pressure

0.13MPa

Gross power

225kW

Power of Cutting motor

135/80kW

Power of electric pump motor

75kW

Input voltage

AC1140/660V

Input frequency

50Hz

Rotation speed of cutting head

47/24r/min

Loading capacity

3.2 m3/min

Crawler width

520mm

Out.width of crawlers

2330mm

Tensioning style

Cylinder tensioning and snap-gauge locking

Water pressure of spraying

Water pressure of outside spraying ≥4MPa

Water pressure of inside spraying ≥2MPa

Max. non-removable parts size

Body frame 3.64×1.39×1.28m

First conveyor front chute 3.8×0.6×0.57m

Max. non-removable parts mass

Body frame5400kg

Economic cutting rock hardness

50MPa
