Items

Parameter

Overall weight

48t

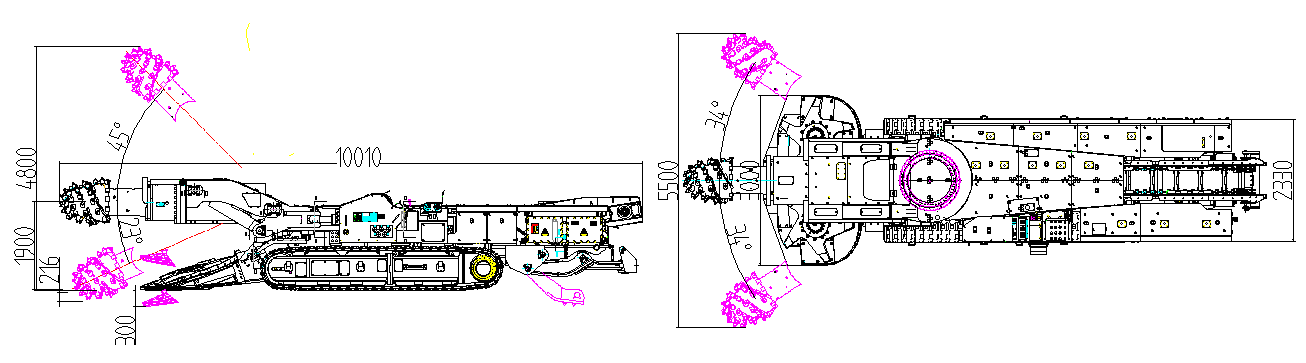

Overall

dimension

Length

10010mm

Width

Shovel plate

3000mm/2600mm

Main body

2330mm

Height

Cutting head is laid horizontally on the highest point

1900mm

Main body

1600mm

Undercut depth (telescopic/contracted)

216/170mm

Ground clearance of machine

200mm

Range of

positoningcutting

Height (telescopic/contracted)

4100/4800mm

Width (telescopic/contracted)

4800/5500mm

Area (telescopic/contracted)

19.68/26.4m2

Gantry height (mm)

400mm

Grade ability

±  18°

Travelling speed

6.5m/min

Grounding pressure

0.144MPa

Gross power

235kW

Power of Cutting motor

160/100kW

Power of electric pump motor

90kW

Input voltage

1140V

Input frequency

50Hz

Rotation speed of cutting head

46/23r/min

Loading capacity

4.2m3/min

Crawler width

600mm

Out.width of crawlers

2330mm

Tensioning style

Cylinder tensioning and snap-gauge locking

Water pressure of spraying

Water pressure of outside spraying≥4MPa

Water pressure of inside spraying≥2MPa

Max. non-removable parts size

3.60x1.16x1.33m

Max. non-removable parts mass

5400kg

Economic cutting rock hardness

60MPa
